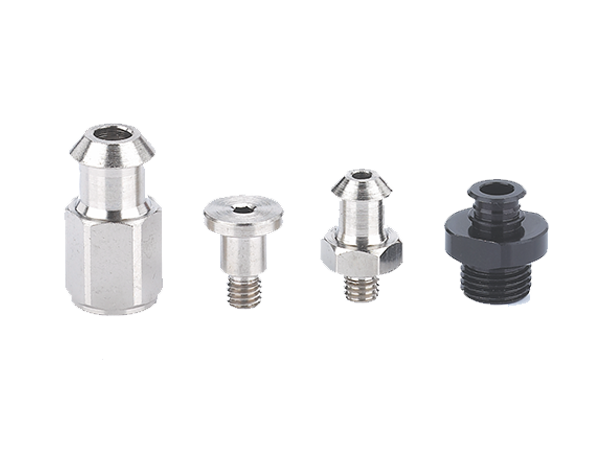

Features
◇ Standard fitting for suction cup , easy for choice.
◇ Separate structure design, reusable and reduce cost greatly.
| How to order | |||
| PJS -G1F -SF1 -EW ① ② ③ ④ | |||
| ① Series | ② Connection thread | ③ Suction cup connection | ④ Special specification |
| PJS | M3M - M3 Male thread M5F - M5 Female thread M5M - M5Male thread M8M - M8Male thread G1F - G1/8Female thread G1M - G1/8Male thread G2F - G1/4Female thread G2M - G1/4Male thread G3F - G3/8Female thread G4F - G1/2Female thread | SF (1-7) SC (1-6) ST (1-8) | Nil -Standard , without special specification EW -Built-in mesh filter EH -Built-in mesh filter and vacuum efficiency valve |
